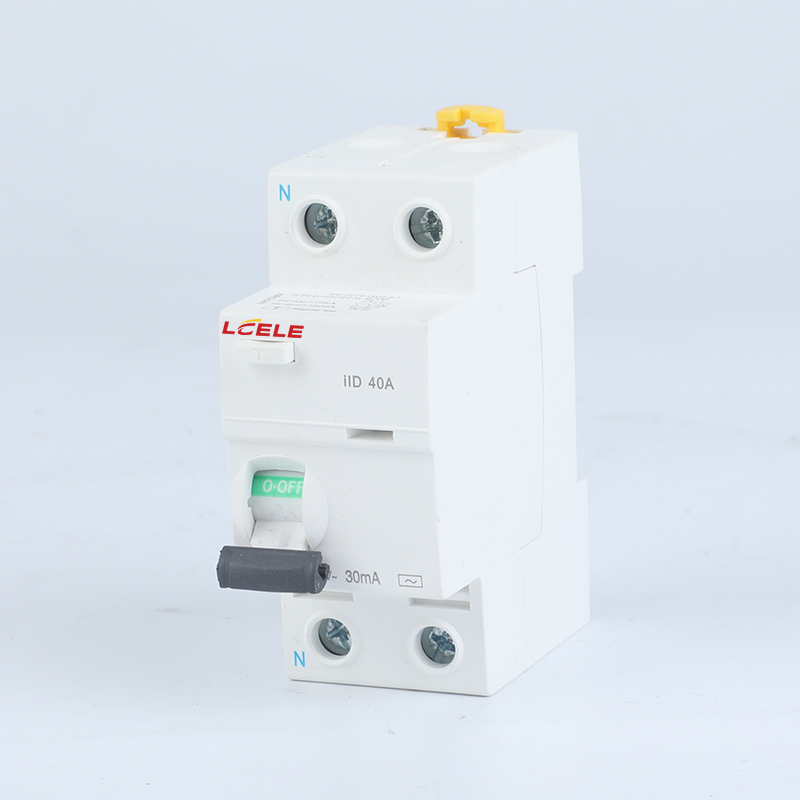

Leakage circuit breaker

Residual current circuit breaker devices provide the function of isolation switching and earth larkage protection of electrical circuits.they open a circuit automatically in the event of an earth fault between phase and earth and /or netural and earth.  A wide rang of current ratings and sensitivities are acailable. suitable for domestic. commercial and industrial applications.

It has the following features:

In complicance with IEC/EN61008-1
Bilateral busbar wiring capabilities to adapt to the wider use of premises.

With functions of fault indicator.

Maximum connecting ability of 35mm2, wiring torque 3.5N *m, applicable to a variety of installing equipments, wiring stronger.



Rated Current In

25A 32A 40A 63A 80A 100A

Poles

2P 4P

Rated residual operating current( In)

10, 30, 100, 300, 500mA

Rated residual non-operation Current( Ino)

0.5In

Rated Voltage(Un)

AC 2P: 230/240V 4P: 400/415V

Residual operating current scope

0.5In~In

Residual current off-time

≤0.3s

Type

A, AC

Ultimate short-circuit breaking capacity (Inc)

10000A

Endurance

≥4000

Terminal protection

IP20
