Junction box and Cable branch box

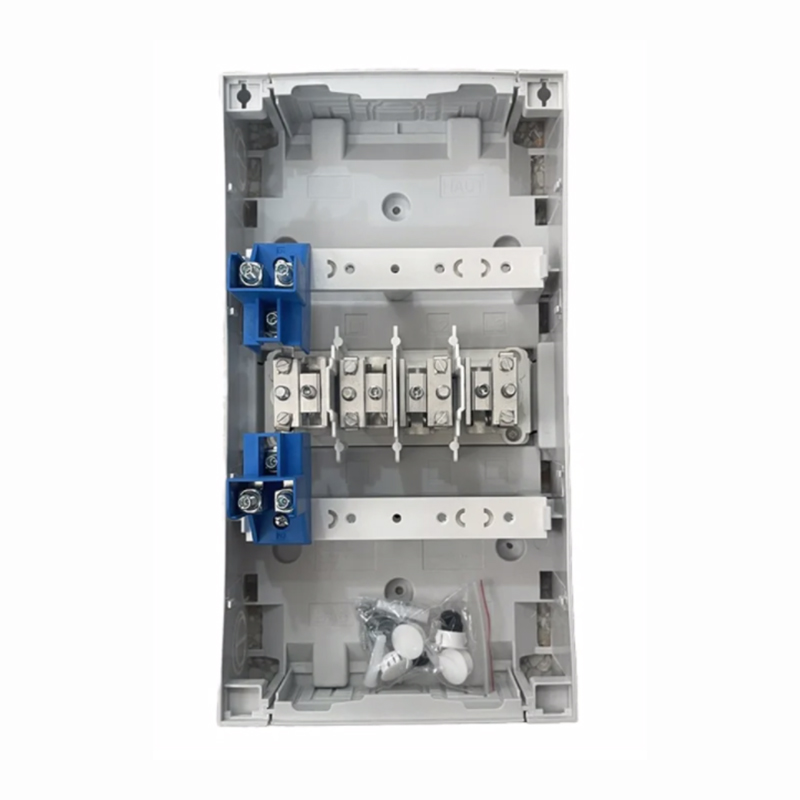

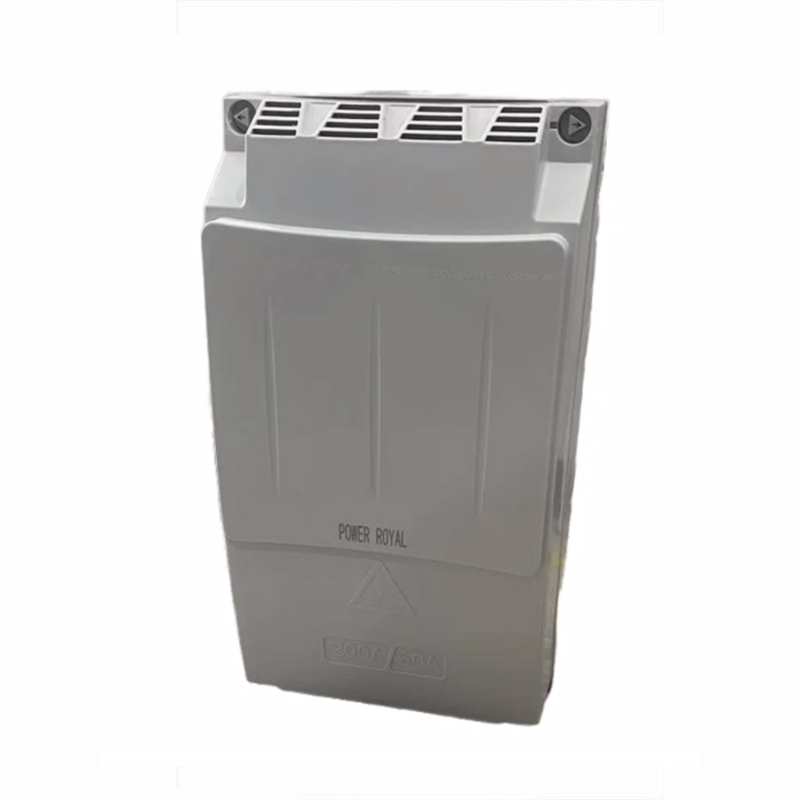

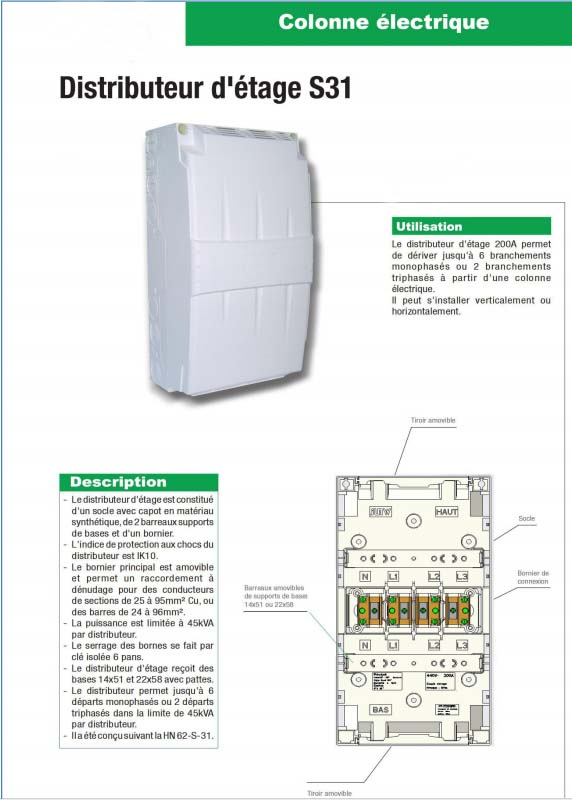

The Cable branch box consists of a base with a cover made of synthetic material , 2 bases support bars and a terminal block.
Description of the product
-The Cable branch box consists of a base with a cover made of synthetic material , 2 bases support bars and a terminal block.
-The impact protection index of the Cable branch box is IK10.
-The main terminal block is removable and allows stripping connections for conductors with sections from 25 to 95mm^2 Cu,or ars from 24 to 96mm^2.
-The power is limited to 45kVA per Cable branch box. The clamping of an isolated 6-panel key.

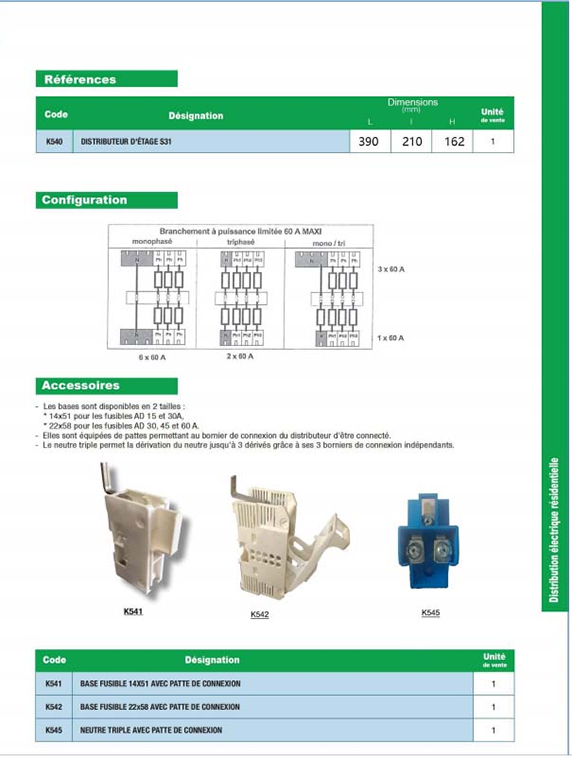

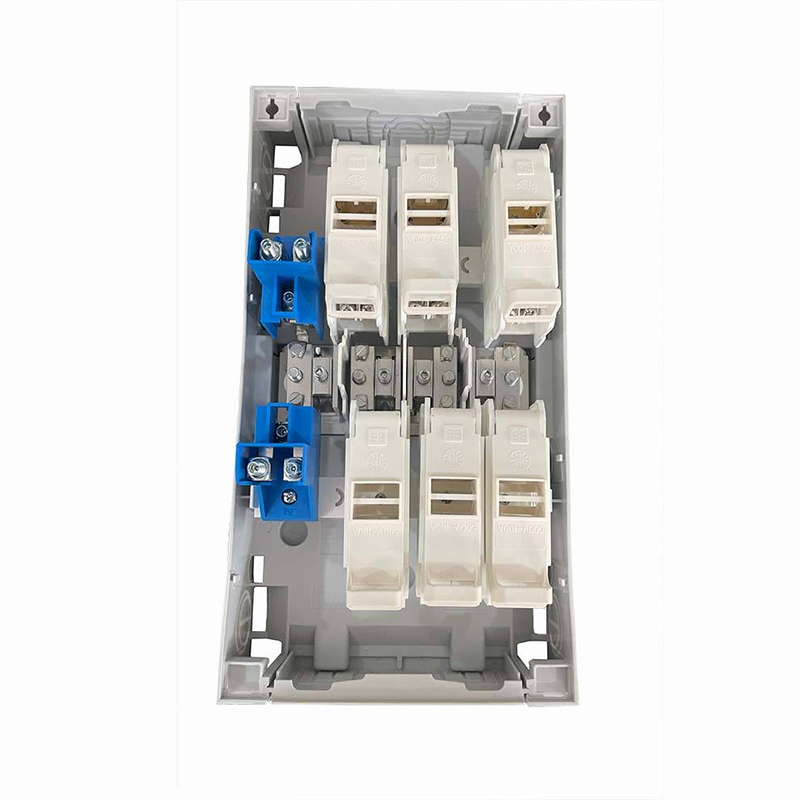

The Cable branch box receives 14x51 and 22x58 bases with legs.
