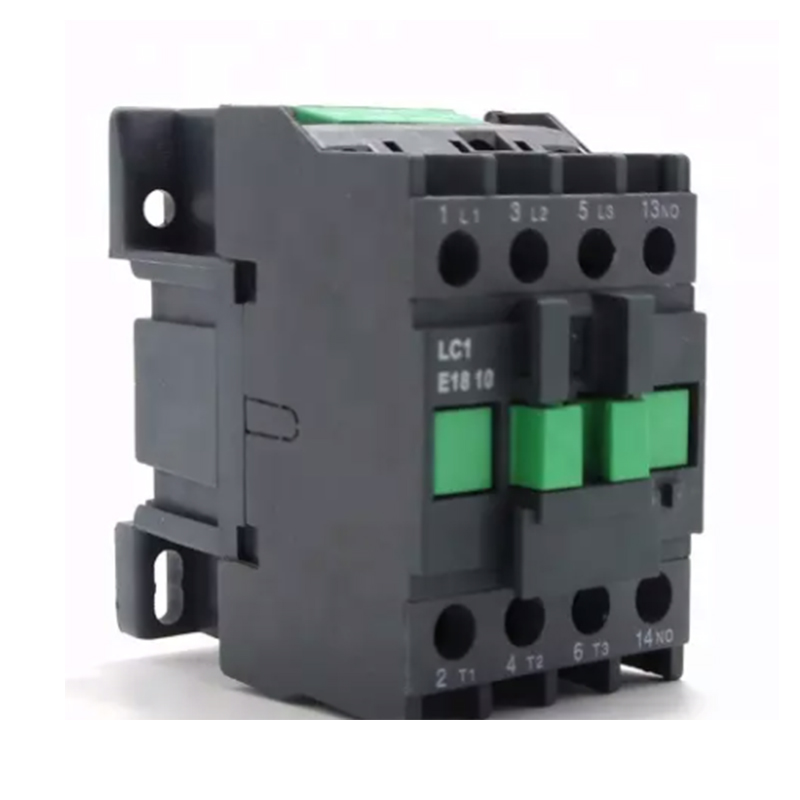

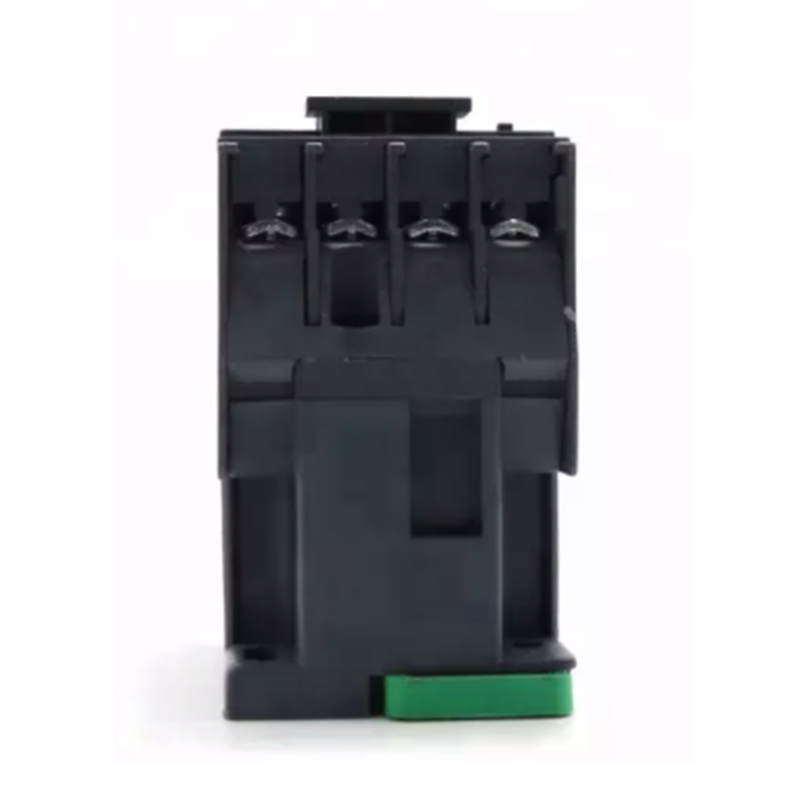

LC1-E series AC Contactor
Application
LC1-E series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50HZ or 60HZ, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.
Specifications
Type | Rated heat current (A) | Rated working current (A) | AC3 capacity of three-phase squirrel-cage motor AC3(KW) | ||
380V | 660V | 380V | 660V | ||
LC1E-9 | 20 | 9 | 6.6 | 4 | 5.5 |
LC1E-12 | 20 | 12 | 8.9 | 5.5 | 7.5 |
LC1E-18 | 32 | 18 | 10.6 | 7.5 | 9 |
LC1E-25 | 40 | 25 | 18 | 11 | 15 |
LC1E-32 | 50 | 32 | 21 | 15 | 18.5 |
LC1E-40 | 60 | 40 | 34 | 18.5 | 30 |
LC1E-50 | 80 | 50 | 39 | 22 | 33 |
LC1E-65 | 80 | 65 | 42 | 30 | 37 |
LC1E-80 | 125 | 80 | 49 | 37 | 45 |
LC1E-95 | 125 | 95 | 49 | 45 | 55 |
