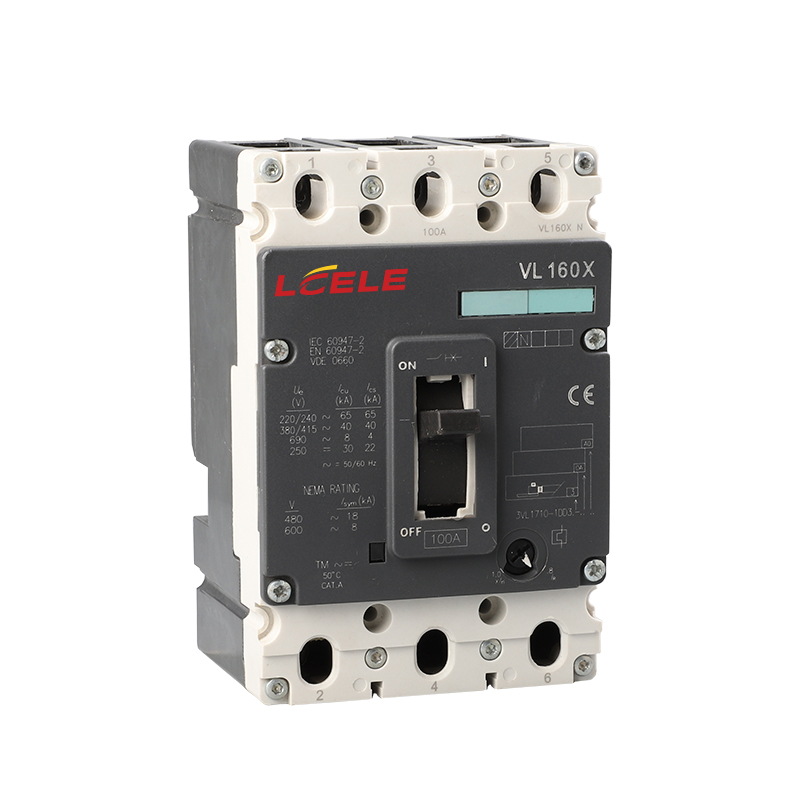

3VL Molded Case Circuit Breaker
SENTRONS VL 3VL Series molded case circuit breaker
The universal solution: Enormous versatility plus space-saving, compact design are the most striking features of the circuit- breakers from 16 A to 1,600 A as they slip into distribution-board layouts. You have a choice of the trip element, either thermo-magnetic (16 A to 630 A) or electronic (63 A to 1,600 A) and the entire range has only two families of internal accessories. It all adds up to maximum versatility combined with minimum expense. The whole range is now also available with UL-approval.
The universal solution: Enormous versatility plus space-saving, compact design are the most striking features of the circuit- breakers from 16 A to 1,600 A as they slip into distribution-board layouts. You have a choice of the trip element, either thermo-magnetic (16 A to 630 A) or electronic (63 A to 1,600 A) and the entire range has only two families of internal accessories. It all adds up to maximum versatility combined with minimum expense. The whole range is now also available with UL-approval.
SENTRONS VL 3VL Series molded case circuit breaker
The universal solution: Enormous versatility plus space-saving, compact design are the most striking features of the circuit- breakers from 16 A to 1,600 A as they slip into distribution-board layouts. You have a choice of the trip element, either thermo-magnetic (16 A to 630 A) or electronic (63 A to 1,600 A) and the entire range has only two families of internal accessories. It all adds up to maximum versatility combined with minimum expense. The whole range is now also available with UL-approval.

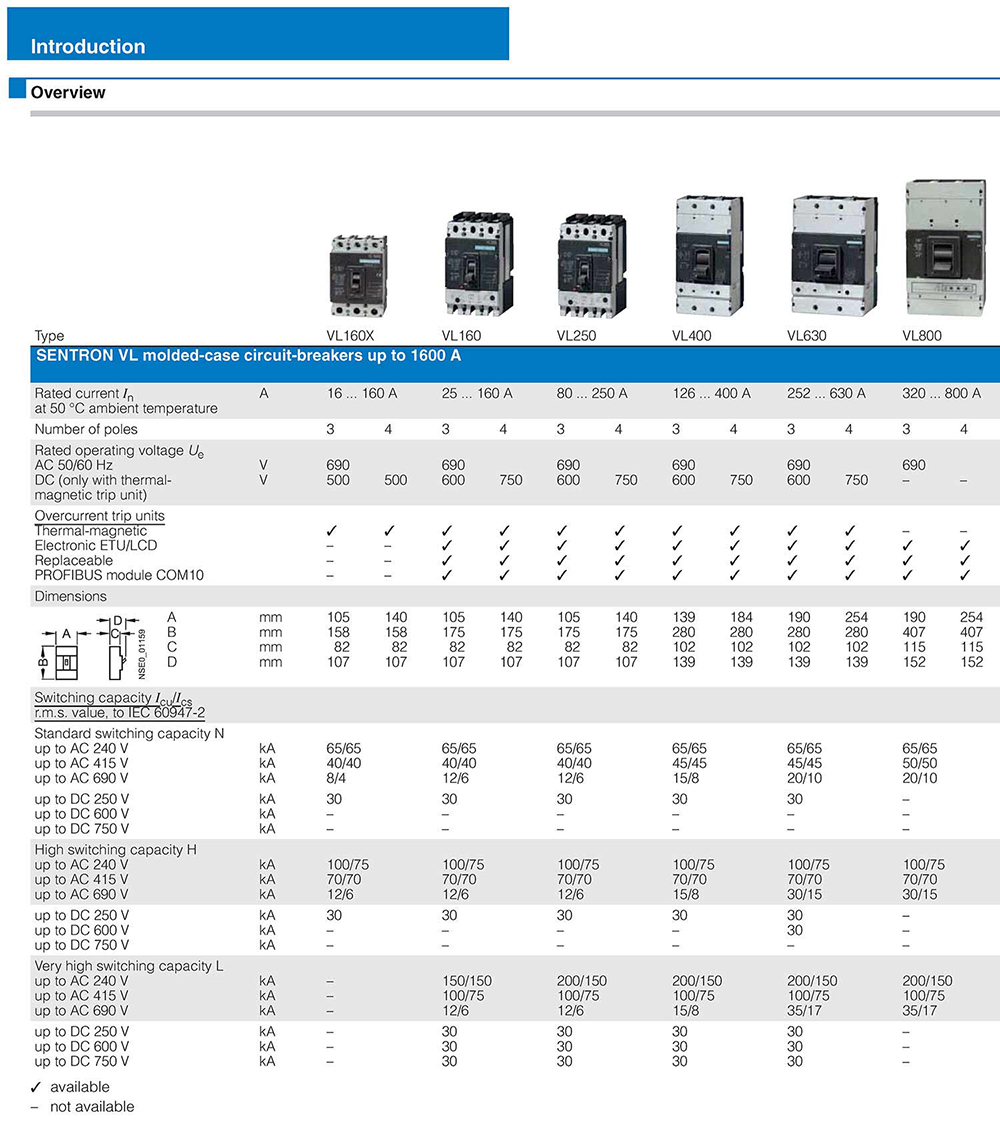

| Model | 3VL-160X | 3VL-160 | 3VL-250 | 3VL-400 | 3VL-630 |
|---|---|---|---|---|---|
| Poles number | 3 | 3 | 3 | 3 | 3 |
| Rated current(A) | 20~160A | 50~160A | 100~250A | 200~400A | 315~630A |
| Rated operating voltageUe(V)AC50/60Hz | 690 | 690 | 690 | 690 | 690 |
| Rated insulation voltage Ui(V) | 800 | 800 | 800 | 800 | 800 |
| Rated impost withstand Voltage Uimp(KV) | 8 | 8 | 8 | 8 | 8 |
| Utilisation category | A | A | A | A | A |
