Yueqing Longchen Electrical Co.Ltd.

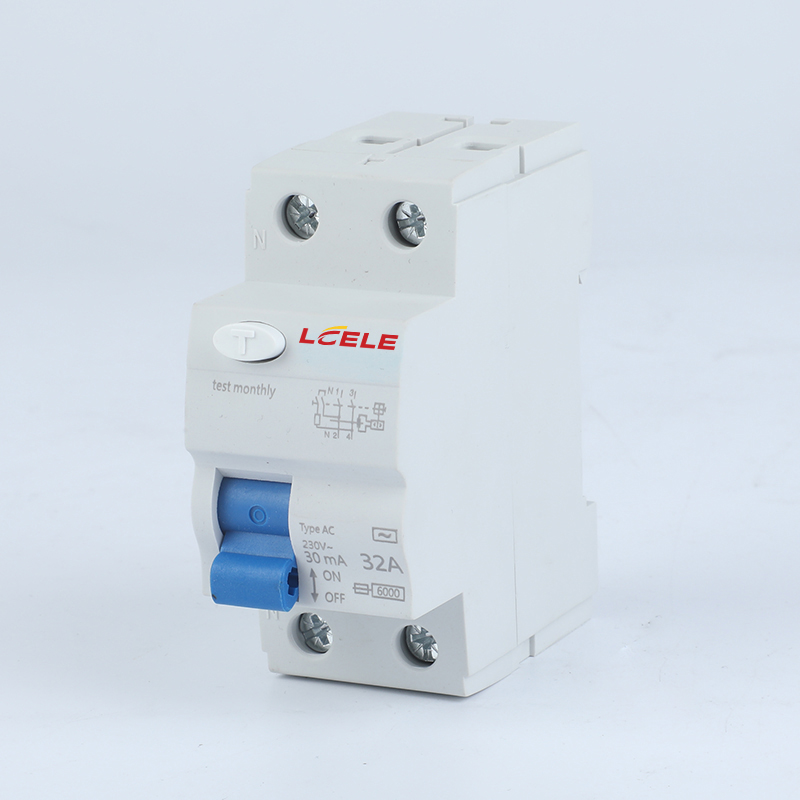

Residual current circuit breaker devices provide the function of isolation switching and earth larkage protection of electrical circuits.they open a circuit automatically in the event of an earth fault between phase and earth and /or netural and earth. A wide rang of current ratings and sensitivities are acailable. suitable for domestic. commercial and industrial applications.
It has the following features:
In complicance with IEC/EN61008-1
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
With functions of fault indicator.
Maximum connecting ability of 35mm2, wiring torque 3.5N *m, applicable to a variety of installing equipments, wiring stronger.
Rated Current In | 25A 32A 40A 63A 80A 100A |
Poles | 2P 4P |
Rated residual operating current( In) | 10, 30, 100, 300, 500mA |
Rated residual non-operation Current( Ino) | 0.5In |
Rated Voltage(Un) | AC 2P: 230/240V 4P: 400/415V |
Residual operating current scope | 0.5In~In |
Residual current off-time | ≤0.3s |
Type | A, AC |
Ultimate short-circuit breaking capacity (Inc) | 10000A |
Endurance | ≥4000 |
Terminal protection | IP20 |
