2P Low Voltage Fuse holder with porcelain 10*38 fuse link
2P Low Voltage Fuse holder with porcelain 10*38 fuse link
Type | Rated Voltage (V) | Rated Current (A) | Dimension(mm) | |||||
A | B | C | D | E | F | |||
RT18-32 | AC500/690,DC250 | 32 | 80.5 | 62 | 17.5 | 62 | 78.5 | 43 |

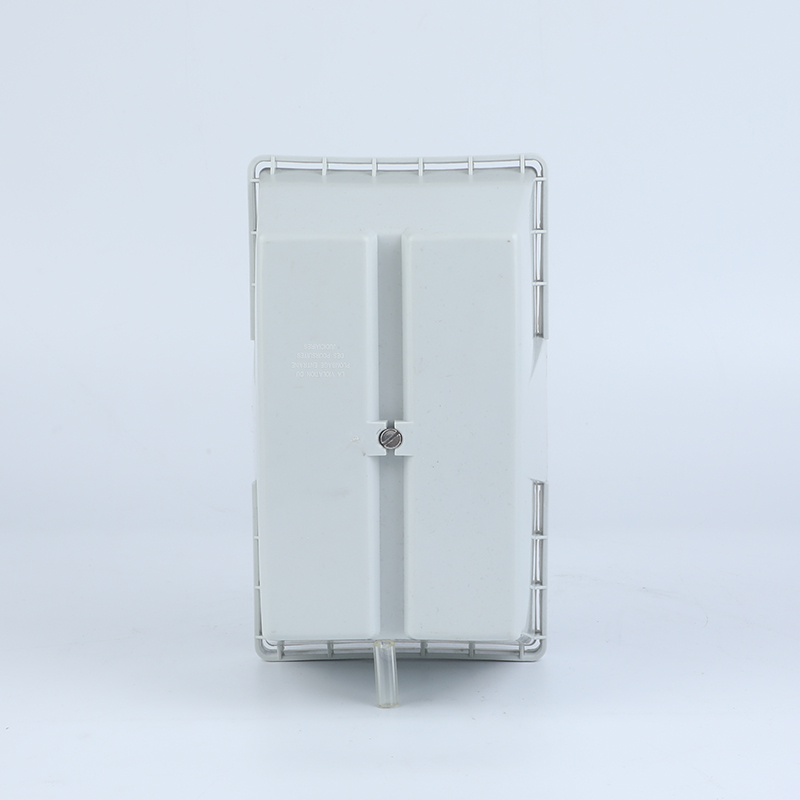

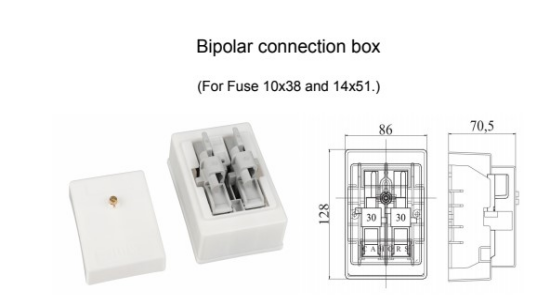

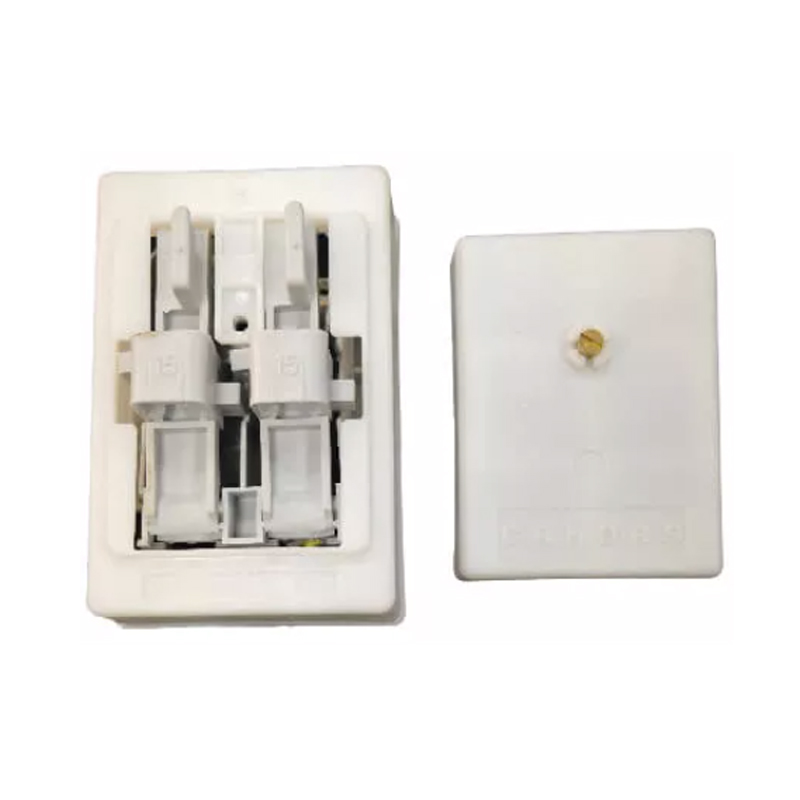

Bipolar connection box for breaking and counting protection. Partial repair of a connection without modification of the installation.
Installation in cabinets and counting panels or on control panels. Made of self-extinguishing synthetic material. Box consisting of a monobloc base supporting the articulated and sectionable grippers and
the sealed cover. The arrival and departure are equipped with cable clamp 25mm² accepting bi-metal wires or
aluminum copper. Equipped with a lever insulating
self-extinguishing material (PA6). Equipped with a fuse holder insulating. Secured by a M4 stainless steel screw. The set is IP 2X. The box includes a terminal cover and a separate cover.For cylindrical fuse cartridge 10x38
and 14x51.
