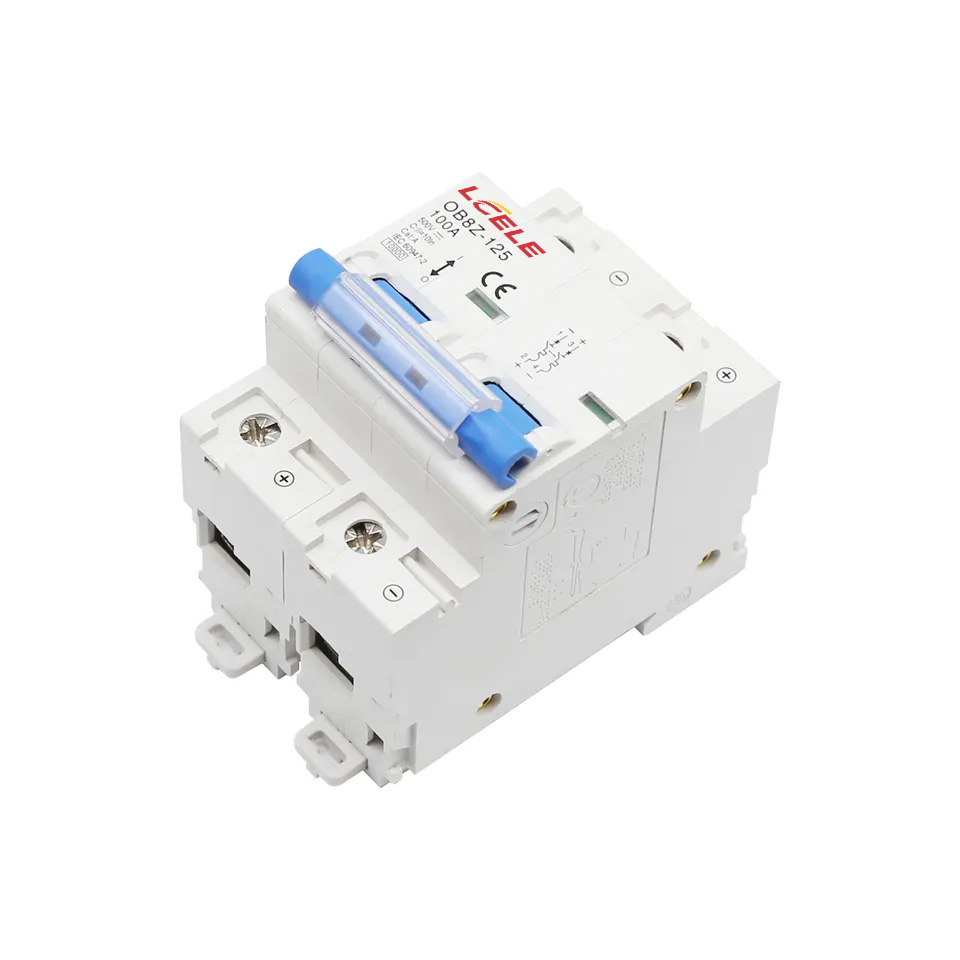

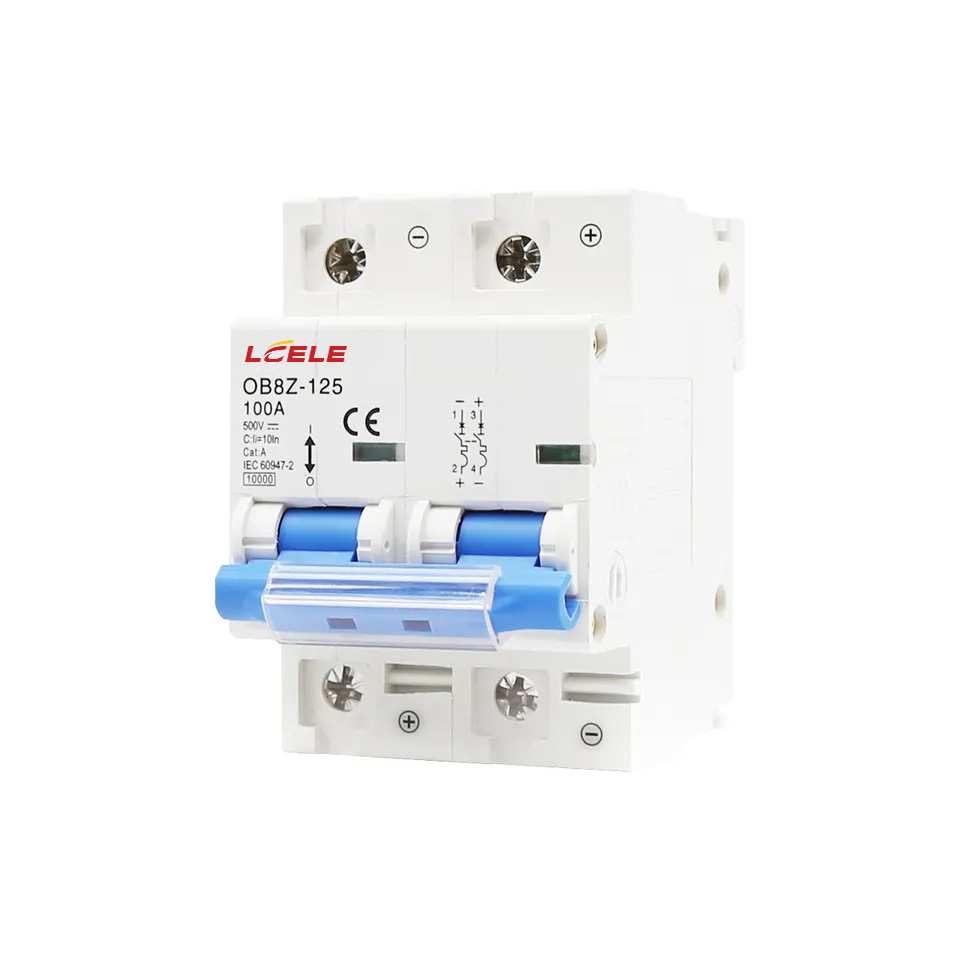

PV DC Circuit Breaker

DC Mini Circuit Breaker is suitable in normal current 125A and below, directly-current rated voltage 220V and 440V, Uses for carries on the overload, short-circuit protection to the current electrical power distribution system’s facility and the electrical equipment, and used in professional electric power, posts and telecommunications transportation, Industrial and mining establishments, and so on.

Product Description

Model

 LC-125 MCB

 Number of poles

1P,2P,3P,4P

Rated Current(In)

 1,2,3,4,6,10,16,20,25,32,40,50,63A

Rated Voltage(Un)

 DC230(240)/400(415)V

 Rated Frequency

 50(60)HZ

 Curve

D

 Short-circuit breaker capacity(Cn)

 10000A

  Magnetic releases

B curve: between 3and 5 In

C curve: between 5and 10In

D curve: between 10 and 14In

  Endurance

 >4000

 Terminal protection

  IP20
